Vgate vLinker FD+

Attention：The vgate brand adapter can be customized for all APP companies.

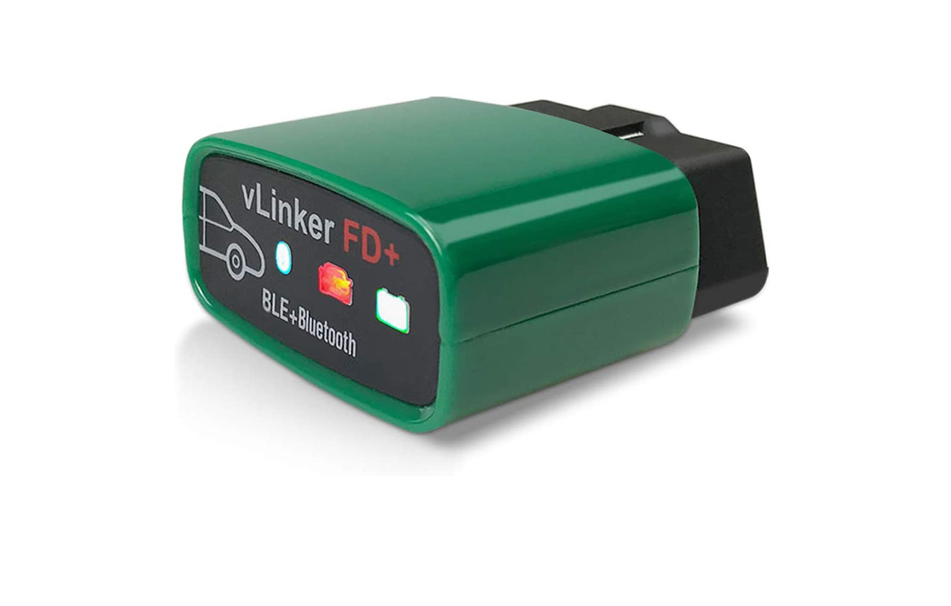

New Product Series - Vgate vLinker FD+ Bluetooth for Android, iOS and Windows

Product description：

  Vgate vLinker FD+ OBD2 Bluetooth recommended by FORScan.
  Vgate vLinker FD+ OBD2 adapter supports MS-CAN protocols - can access these proprietary Ford networks in addition to the 5 standard OBD-II protocols.
  Vgate vLinker FD+ OBD2 scanner bluetooth works with FORScan, Carista, Torque, DashCommand, JScan, BimmerCode and dozens of other apps.
  Over-voltage, over-current, over-temperature and battery drain protection, firmware updates. TP transmission protocol , Ensure wireless communication security.
  Vgate vLinker FD+ OBD2 diagnostic tool is fully compatible with ELM's AT command set (ELM327, ELM329) and STN's ST command set.

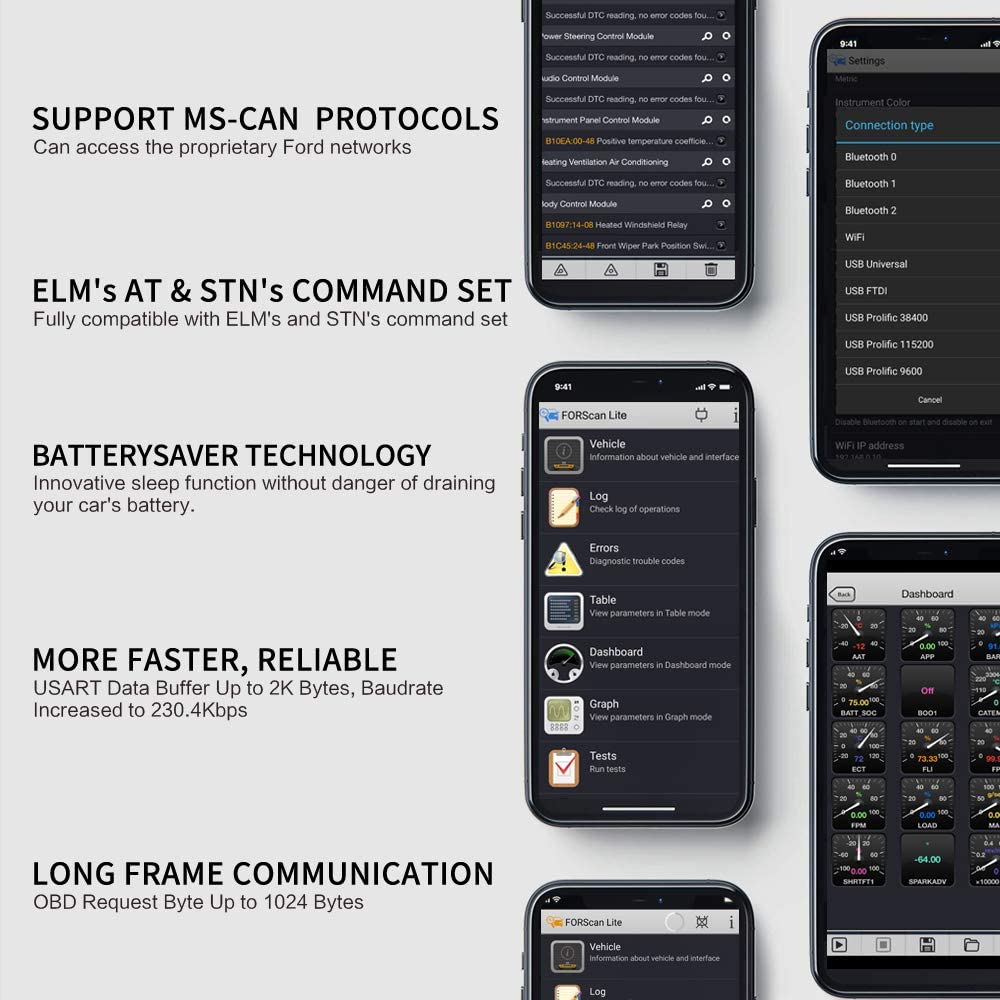

Key Features:

  USART data buffer up to 2K bytes, baud rate increased to 230.4Kbps. Faster, more reliable, and more feature-rich than its predecessors.

  OBD request byte up to 1024 bytes, can meet the needs of some special long frame communication.

  Support battery voltage drop, OBD bus active etc. Up to 3 ways to wake up from sleep mode.

  Over-voltage, over-current, over-temperature and battery drain protection, firmware updates.

Recommended by FORScan

Vgate vLinker FD+ Bluetooth Operation Steps - For Android

Android & iOS Device - For detailed steps, please refer to the instruction manual carefully to avoid operating errors.

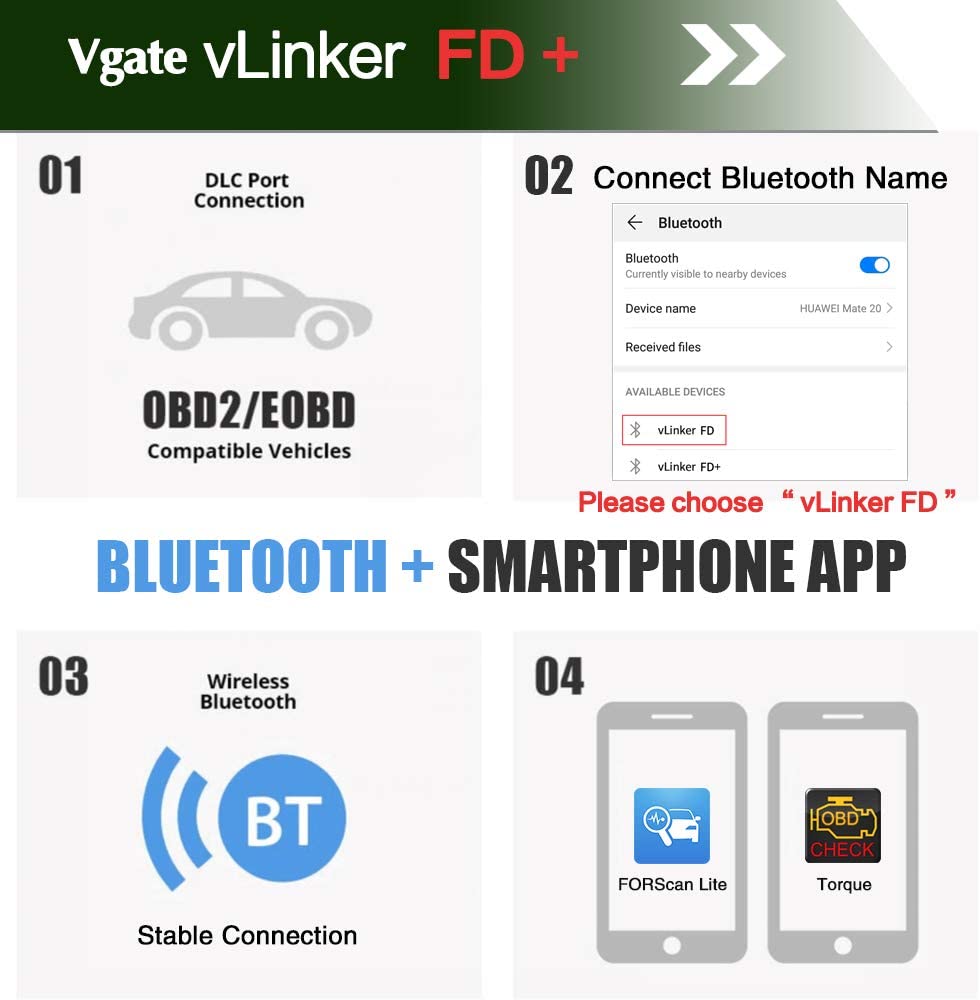

# Android System Operation Steps ** - Vgate vLinker FD+

1.Insert the product into the OBD interface of the car.

2.Turn ignition to Key On Engine Off Position

3.Turn on Bluetooth on the phone.

4.NOTE: Search for the device name "vLinker FD" and click Pair. (For Android system) Attention!! Do not pair "vLinker FD+" .

5.Enter the Pairing Code: 1234 . If the pairing is successful, you can open the APP to set up the connection.

# iOS System Operation Steps ** - Vgate vLinker FD+

1.Plug the product into the OBD2 interface of the car.

2.Turn ignition to Key On Engine Off Position

3.Turn on Bluetooth on the phone.

4.No need to configure Bluetooth device name in the phone. Just enable Bluetooth button on the iOS device and continue to the OBD app setting.

* NOTE: In the steps of APP operation, since different APPs have different setting and connection steps, please operate according to the relevant information on the APP's official website.
