New Product Series - Vgate vLinker BM+ Bluetooth for Android, iOS and Windows
About this item
Supports TP transmission protocol, ensure wireless communication security. ✔️NOTE: The firmware of BimmerCode supporting E and R series models before 2008 has been tested and will be released soon, please wait for the update.

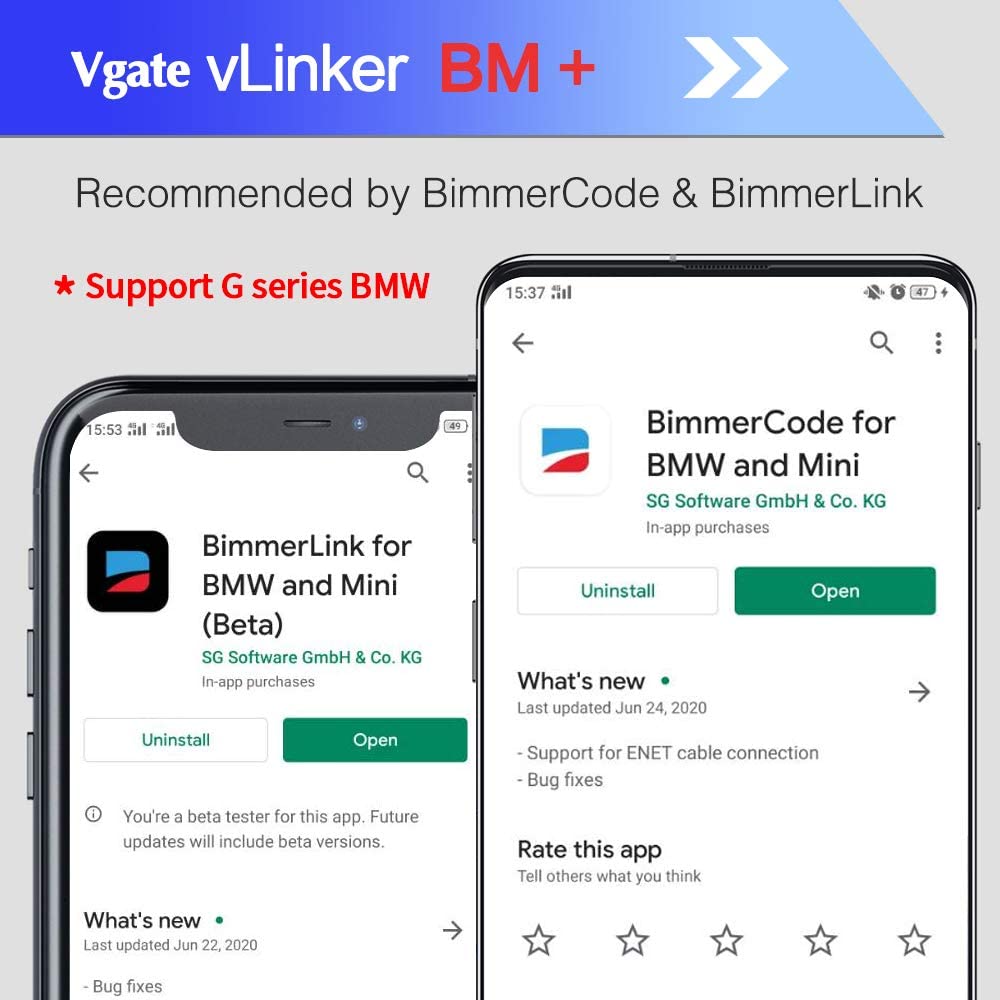

Upgraded version of iCar Pro Bluetooth, specifically for coding APP BimmerCode that requires large amount of data transmission.
Vgate vLinker BM+ OBD2 bluetooth transform your iOS(BLE), Android device, or Windows PC into a professional-grade diagnostic scan tool.
vLinker BM+ bluetooth code reader is available for over-voltage, over-current, over-temperature and battery drain protection.
Vgate vLinker BM+ bluetooth OBD2 scanner won't drain your battery if you leave it plugged in. Operating Current is 51 mA, automatic sleep in idle state, sleep current is as low as 3mA.Compared with the Vgate iCar Pro series, the Vgate vLinker BM series has any improvement?

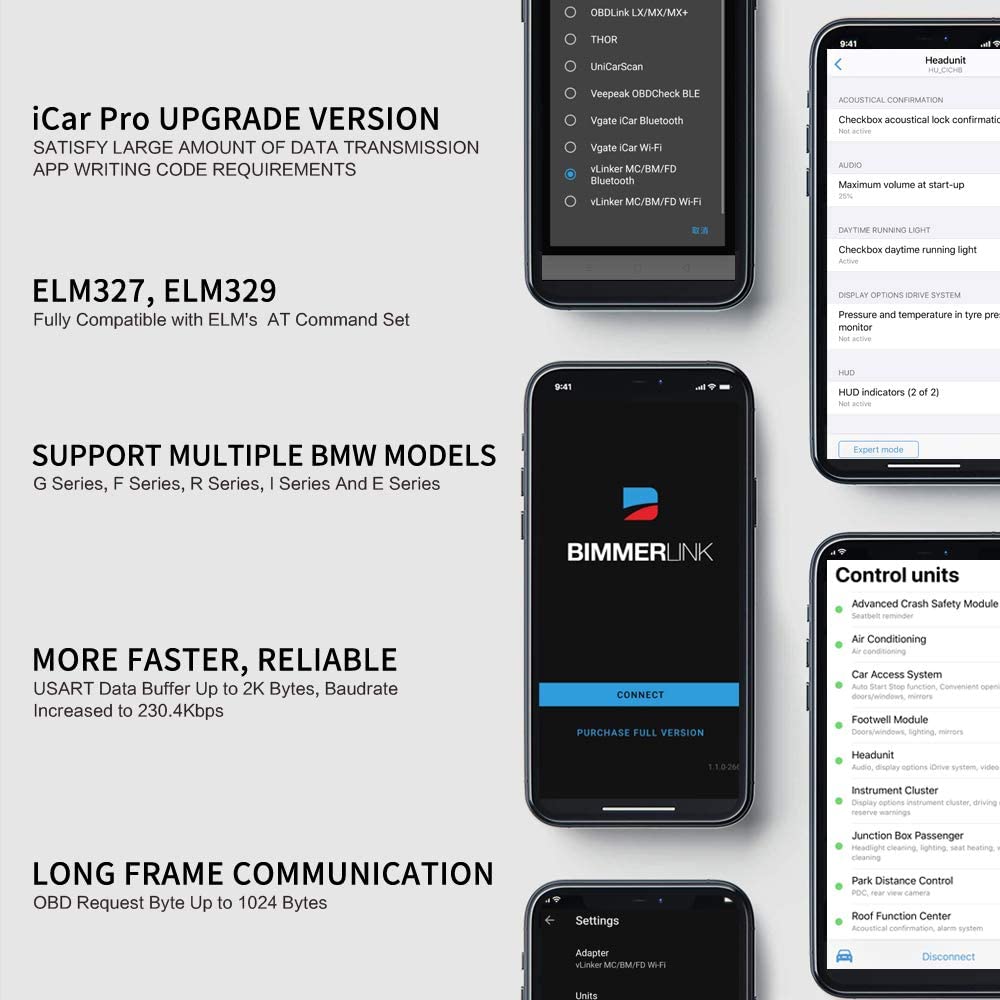

USART data buffer up to 2K bytes, baud rate increased to 230.4Kbps. Faster, more reliable, and more feature-rich than its predecessors.
Not only supports fully compatible ELM327 AT commands, but also compatible with ELM329 AT commands.
OBD request byte up to 1024 bytes, can meet the needs of some special long frame communication.
Supports battery voltage drop, OBD bus active, etc. Up to 3 ways to wake up from sleep mode.
Over-voltage, over-current, over-temperature and battery drain protection.
TP transmission protocol, Ensure wireless communication security.
Superior compatibility-works with more 3rd party apps & software than any other adapter.

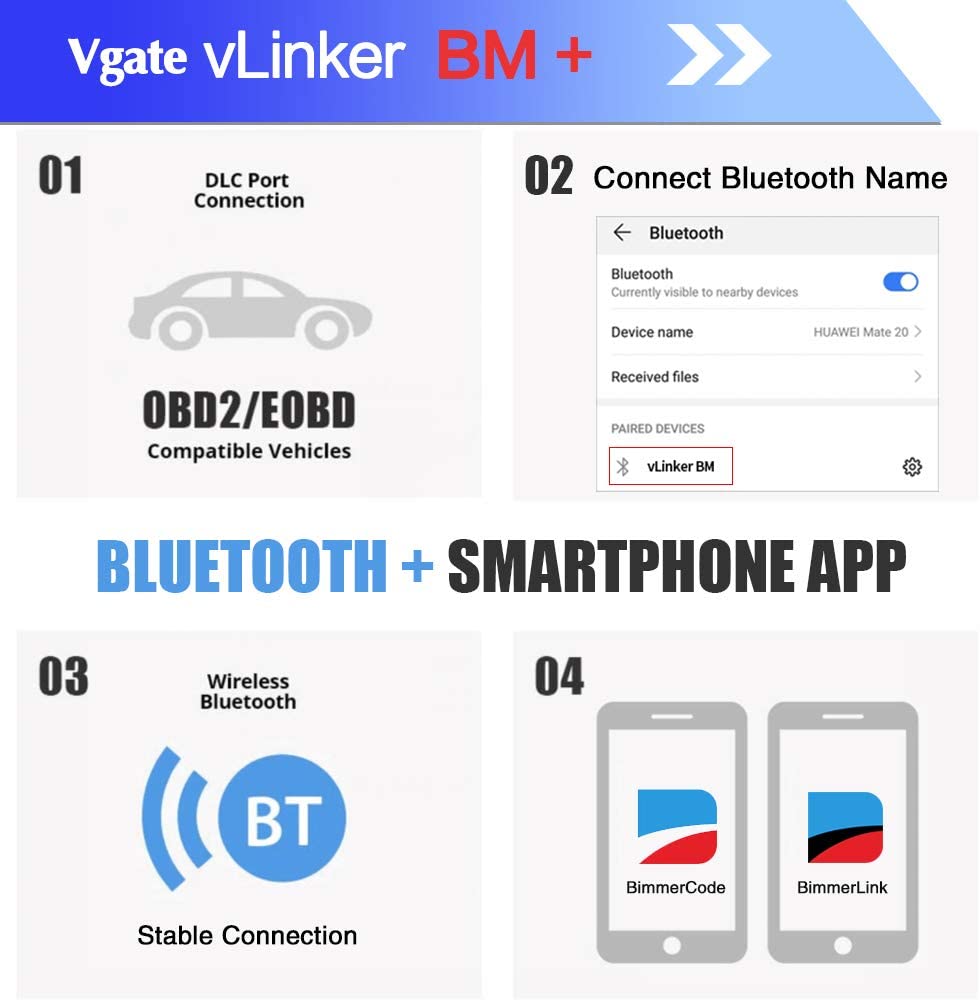

Vgate vLinker BM+ Bluetooth Operation Steps - For Android
Android & iOS Device - For detailed steps, please refer to the instruction manual carefully to avoid operating errors.
# Android System Operation Steps ** - Vgate vLinker BM+
1、Insert the product into the OBD interface of the car.
2、Turn ignition to Key On Engine Off Position
3、Turn on Bluetooth on the phone.
4、NOTE: Search for the device name "vLinker BM" or "vLinker BM-Android"and click Pair. (For Android system) Attention!! Do not pair vLinker BM+ or "vLinker BM-IOS"
5、Enter the pairing code: 1234 . If the pairing is successful, you can open the APP to set up the connection.
# iOS System Operation Steps ** - Vgate vLinker BM+
1、Plug the product into the OBD2 interface of the car.
2、Turn ignition to Key On Engine Off Position
3、Turn on Bluetooth on the phone.
4、No need to configure Bluetooth device name in the phone. Just enable Bluetooth button on the iOS device and continue to the OBD app setting.
* NOTE: In the steps of APP operation, since different APPs have different setting and connection steps, please operate according to the relevant information on the APP's official website.
## NOTE: The firmware of BimmerCode supporting E and R series models before 2008 has been tested and will be released soon, please wait for the update.
-
-
