    Product description:

    12-Way connectors: 6 x hole-holders and 6 x threaded studs.

    Tapered Post Type: SAE, DIN, EN (But JIS Pencil Post Not Included).

    Battery Voltage: 48V 36V 24V 12V 6V

    Battery for: Car, Caravan, Motorhome, RV, Bus, Truck, Pickup, Houseboat, Motorcycle, Forklift, Crane, Solar Power Bank and more others.

    Vgate battery terminals are 6061 aluminum machined parts, in addition to high precision, high toughness and good corrosion resistance.



    vgate

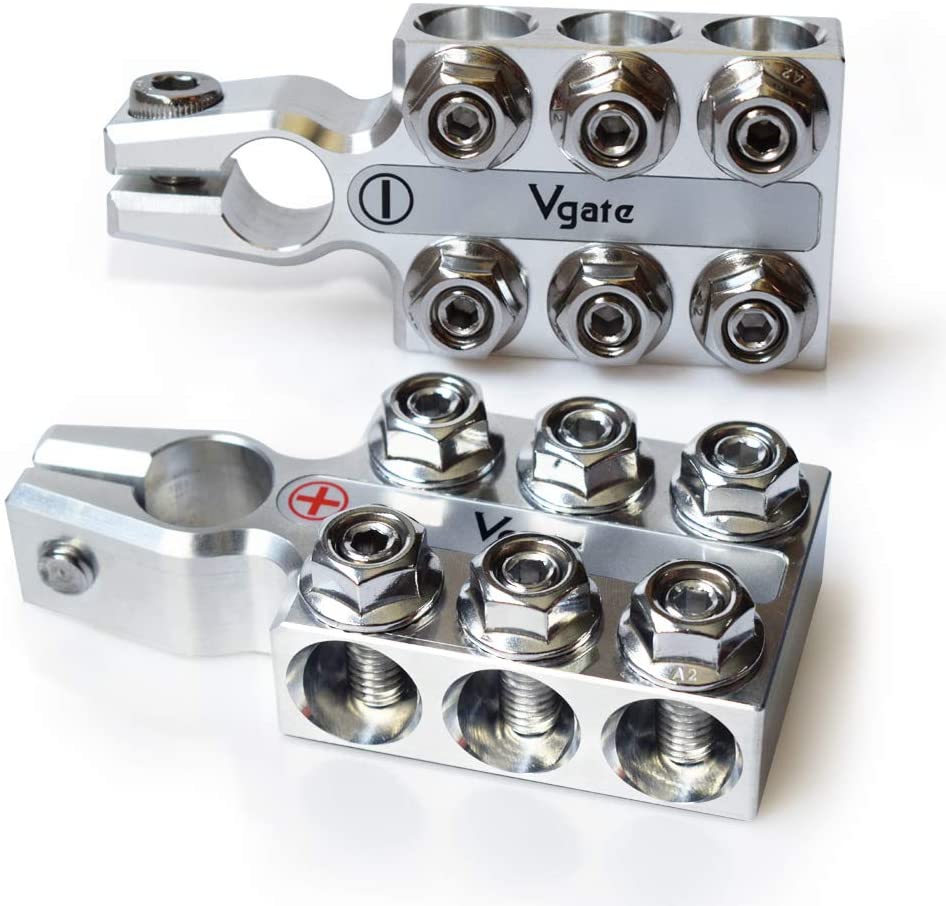

    Vgate Lead Acid Battery Terminal Clamps, 8AWG up to 4/0(XL) AWG Gauge, 12-Way Connectors for SAE/DIN/EN Tapered Top Post

    Unlike other common brands of castings, Vgate battery terminals are machined from 6061 aluminum.

    In addition to high precision, it also has high toughness and good corrosion resistance.



    Application for the Following Batteries:

    Battery Type: Lead Acid Batteries (AGMGELWETMF and CA/CA);

    Tapered Post TypeSAEDINEN (But JIS Pencil Post Not Included).

    Battery Voltage: 48V, 36V, 24V, 12V, 6V

    Battery for: Car, Caravan, Motorhome, RV, Bus, Truck, Pickup, Houseboat, Motorcycle, Forklift, Crane, Solar Power Bank and more others.

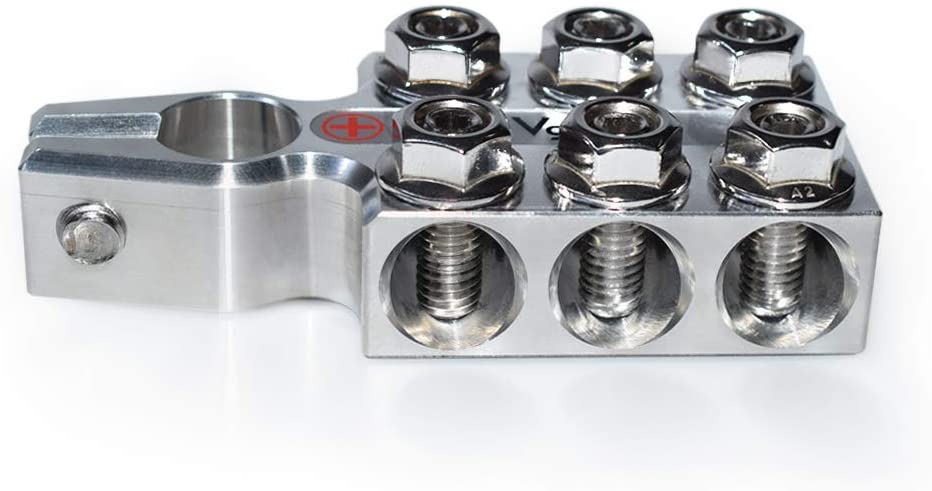

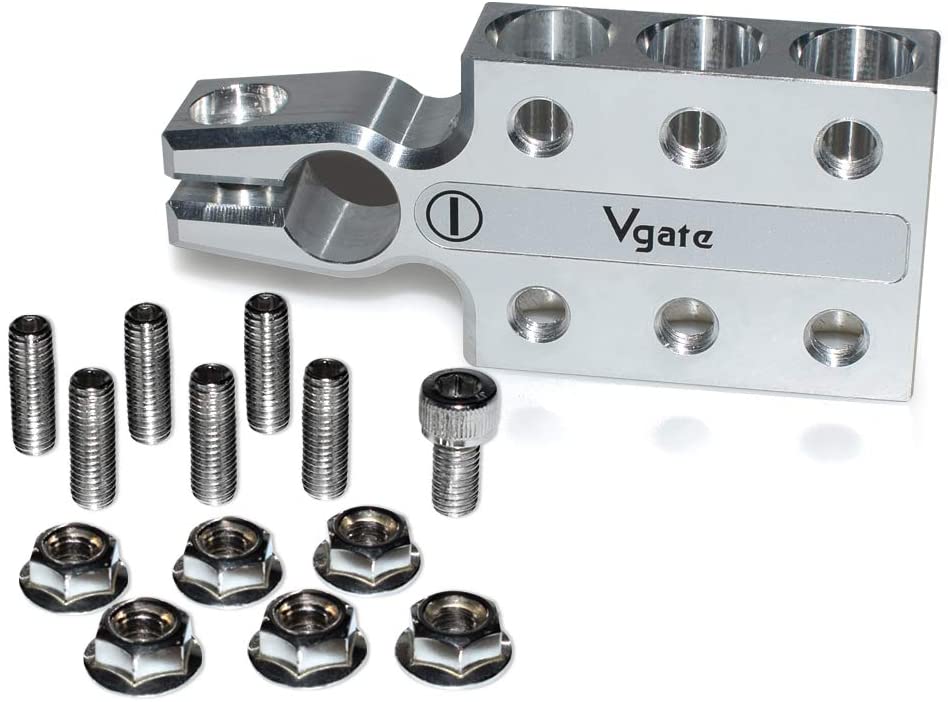

    12-Way Connectors: 6 x Hole-Holders and 6 x Threaded Studs.

      Vgate battery terminal 6-hole holders exactly to hold 00 (2/0) AWG welding cable, and also can hold other gauge cables: 1/0AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG and so on, but the size of holders are bigger than the above-mentioned gauges.

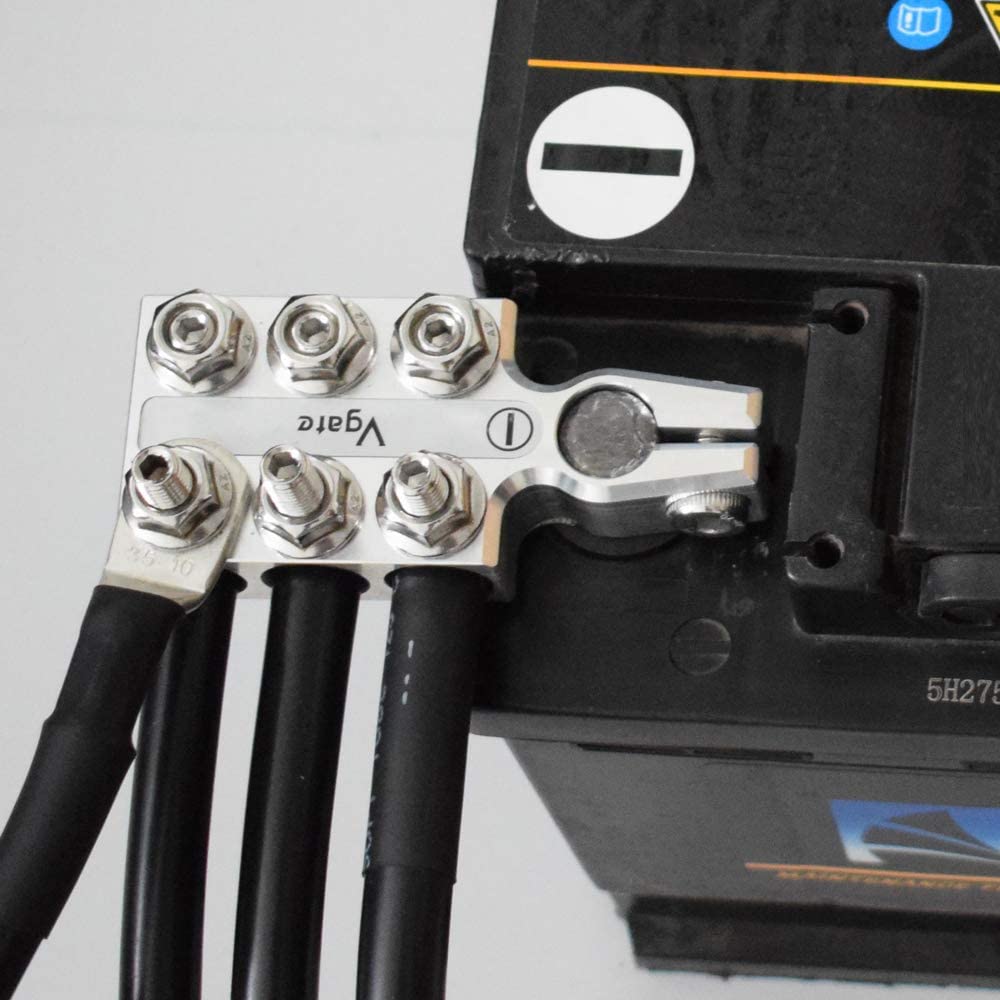

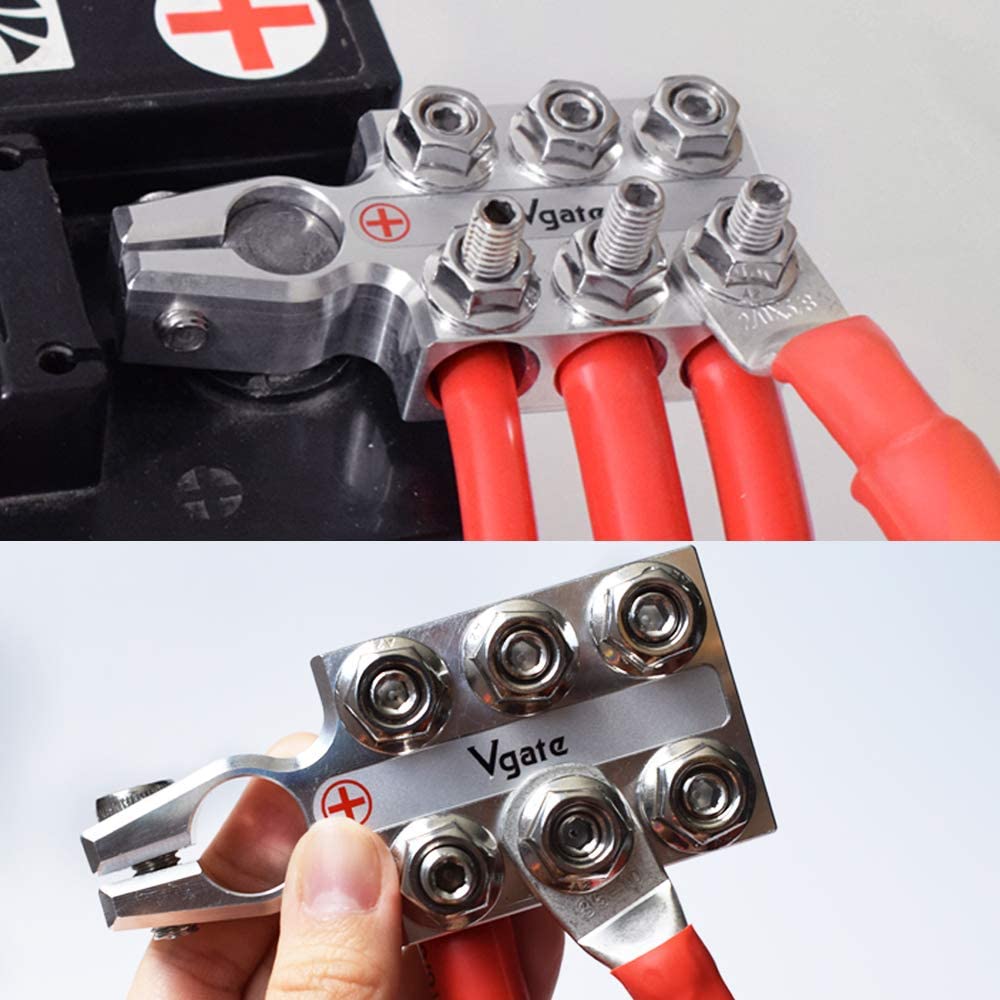

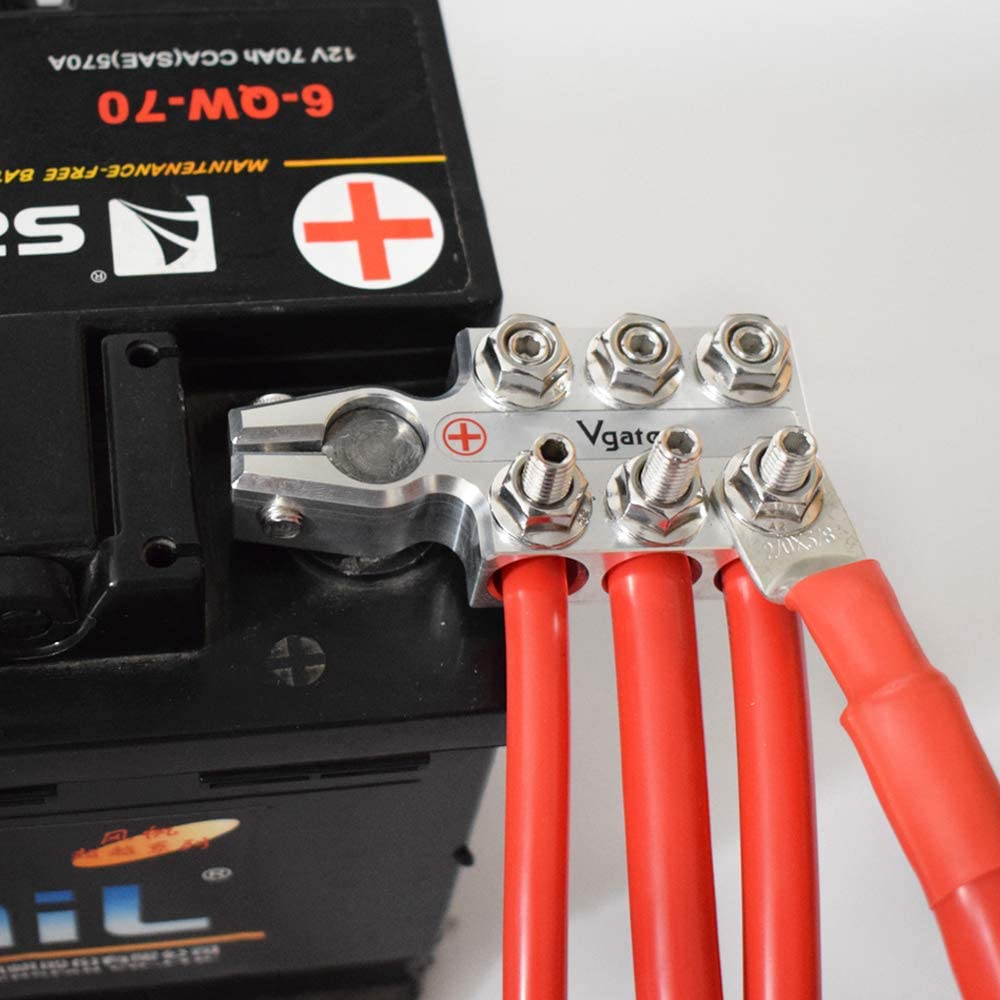

      6 x threaded studs to connect ring terminals (cable lugs); the size of studs are 8mm to be suitable for the following eyelet of ring terminals:1/2”, 3/8” and 5/16”; or 12mm, 10mm, 8mm.

      The above-mentioned ring terminals (cable lugs) to crimp large-scale gauge cables as following:4/0(XL) AWG, 4/0AWG, 3/0AWG, 2/0AWG, 1/0AWG, 2AWG, 4AWG, 6AWG, 8AWG and so on.

      NOTE:This product does not contain the cable lugs shown in the picture.

    VGATE

    VGATE Important Notice

      1)Hole Holder Size Clarification:

     2/0AWG wire diameter is 0.3648 inch (9.266mm), which is more than enough to hold 2/0AWG wire.

      2)Application for SAE/ EN/ DIN:

      It's very important to lengthen the handle of Allen key to long enough as the attached picture, because short handle allen key cannot work.

      Our Vgate terminal clamp is very strong to ensure safety.

      Note: This product does not include this wrench.

      Package Includes:

    1 X Positive Battery Terminal Clamp (19.5 ± 0.4mm)

    1 X Negative Battery Terminal Clamp (17.9 ± 0.4mm)
