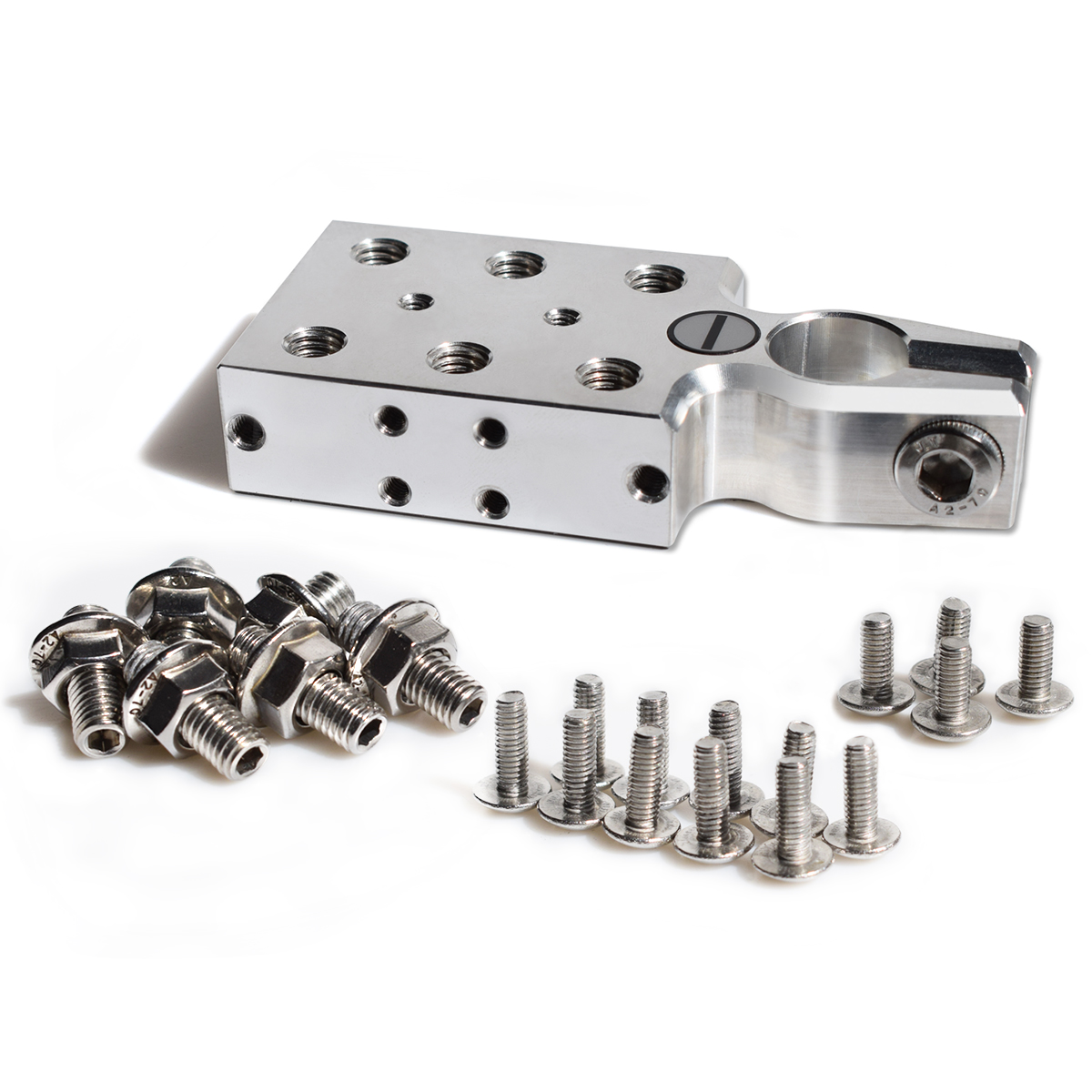

• Vgate 20-Stud AGM Battery Post Terminal Distribution Block to Connect 8AWG up to 4/0(XL) Gauge Wire for Tapered Top Post SAE/ DIN/ EN



    Unlike other common brands of castings, the battery terminal clamps are machined from 6061 aluminum. In addition to high precision, it also has high toughness and good corrosion resistance.



    Description:

    1) To neatening up wire installation and clean up cluttered battery terminals;

    2) Coming in pairs (one positive, one negative) (+/-);

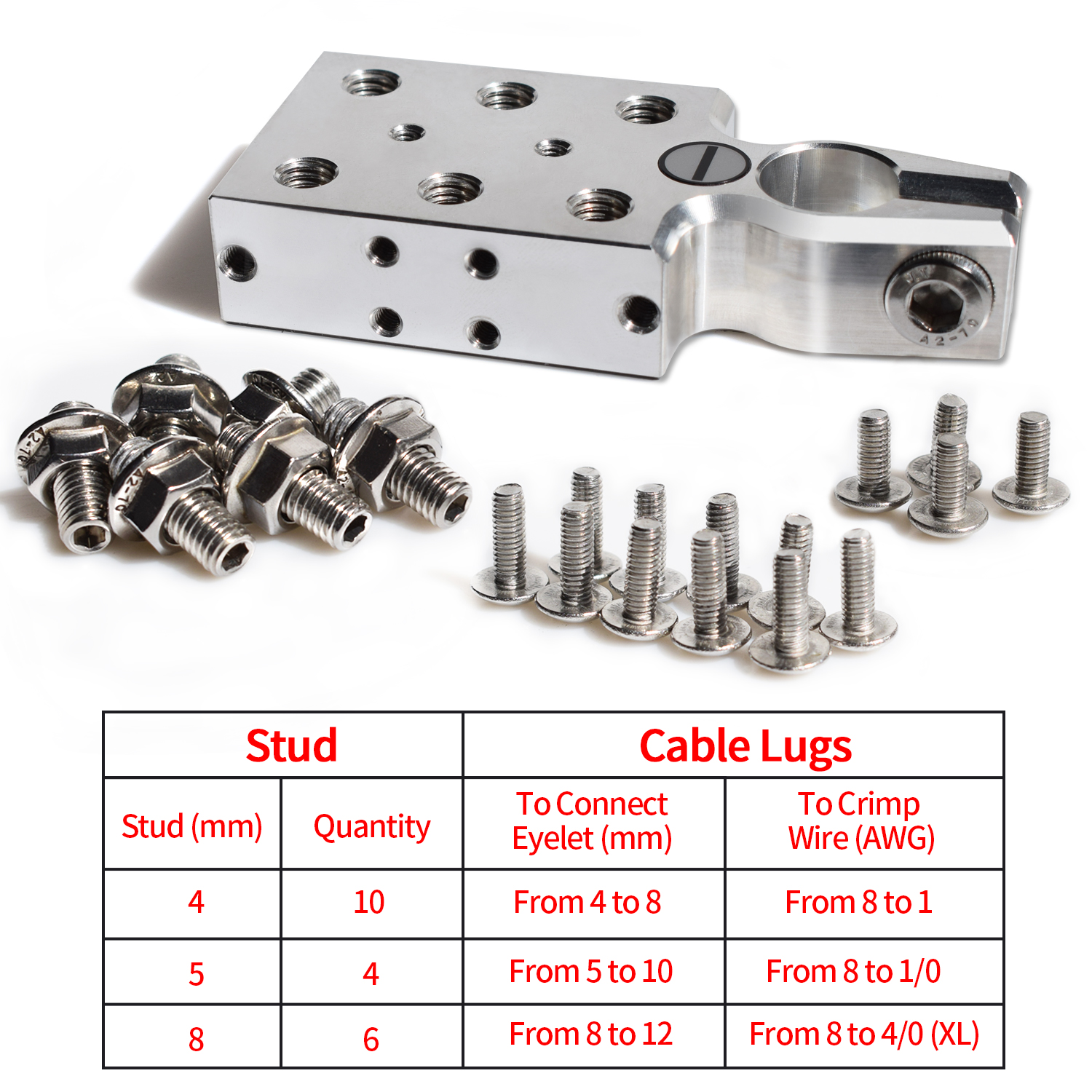

    3) Both positive and negative battery terminals have 20 studs, which are only suitable for the following cable lugs:





    Stud

    Cable Lugs

    Size (mm)

    Quantity

    To Connect

     Eyelet (mm)

    To Crimp

    Wire (AWG)

    4

    10

    From 4 to 8

    From 8 to 1

    5

    4

    From 5 to 10

    From 8 to 1/0

    8

    6

    From 8 to 12

    From 8 to 4/0 (XL)





    Application for Following Batteries:

    ★ Battery Type: Lead Acid Battery (AGM, GEL, WET, MF and CA/CA);

    ★ Battery Post Type: SAE/ DIN/ EN (But JIS Pencil Post not Included);





    Tapered Post Type

    Tapered Post Bottom Size

    Height

    (mm)

    Pos. (mm)

    Neg. (mm)

    SAE

    19.5 ± 0.4

    17.9 ± 0.4

    18.6 ± 2

    DIN

    18 ± 2

    EN

    17 ± 2





    ★ Battery Brands:







    ★ Battery Voltage: 48V, 36V, 24V, 12V, 6V;

    ★ Battery for: Car, Caravan, Motorhome, RV, Bus, Truck, Pickup, Houseboat, Motorcycle, Forklift, Crane, Solar Power Bank and more others.



    Package Includes：

    1) 1 X Positive Terminal;

    2) 1 X Negative Terminal;

    3)Teeth Washer: 28 pcs



    Attention:

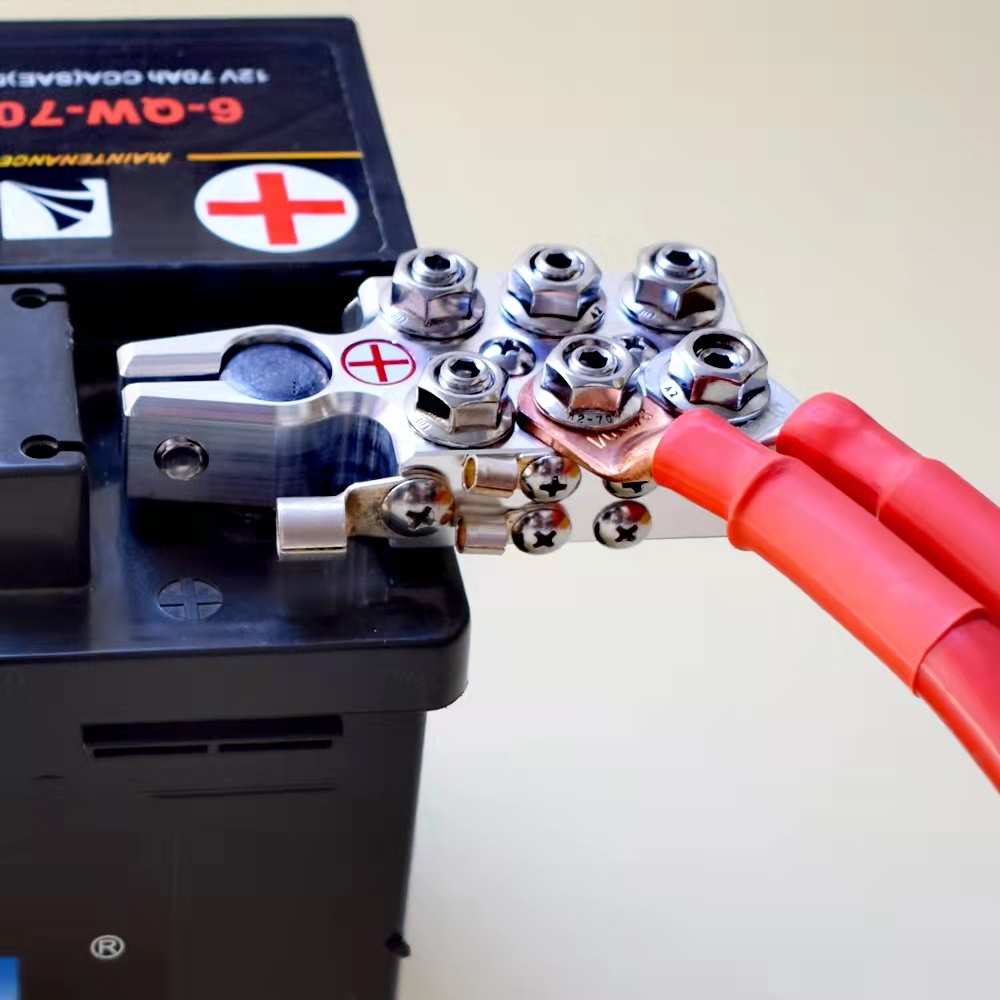

    1)It’s most important to put battery terminal to the end of battery post, or cannot tighten up;

    2)To lengthen handle of allen key, if cannot be tightened up as above, (as the terminal so strong to make safety insurance);

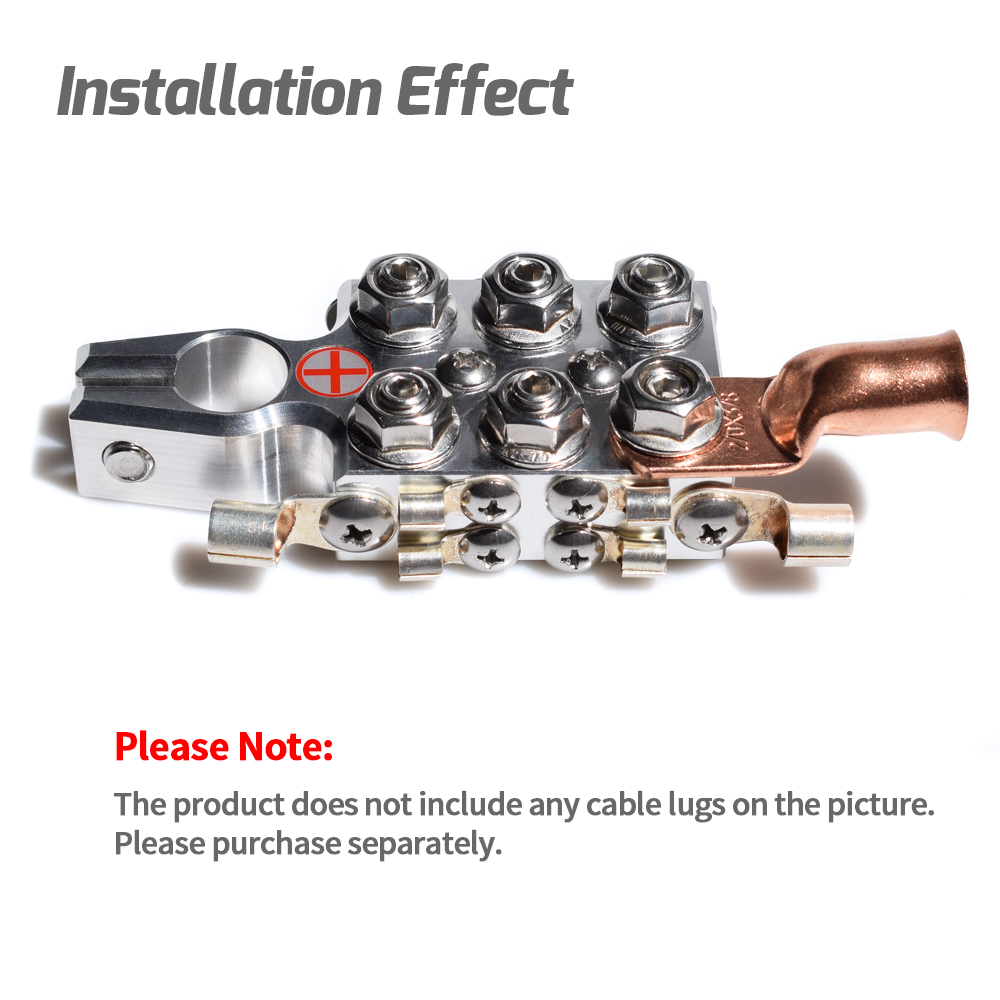

    3)To move up screw (8mm) and keep length enough to connect cable lugs;

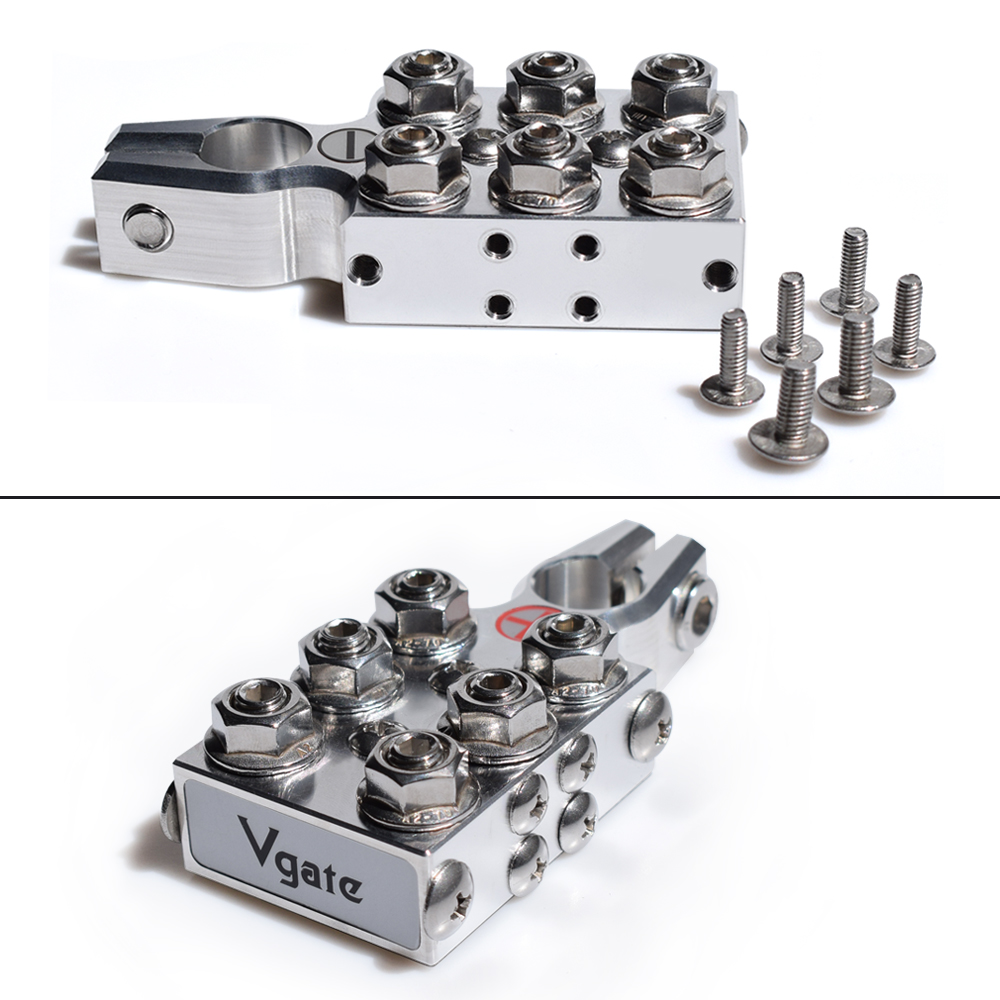

    Note: Due to the limited thickness of the packaging box, there is no reserved installation space for the assembled 8mm screws, and the customer needs to unscrew the screws up a section to install the cold-pressed terminals of the wires
